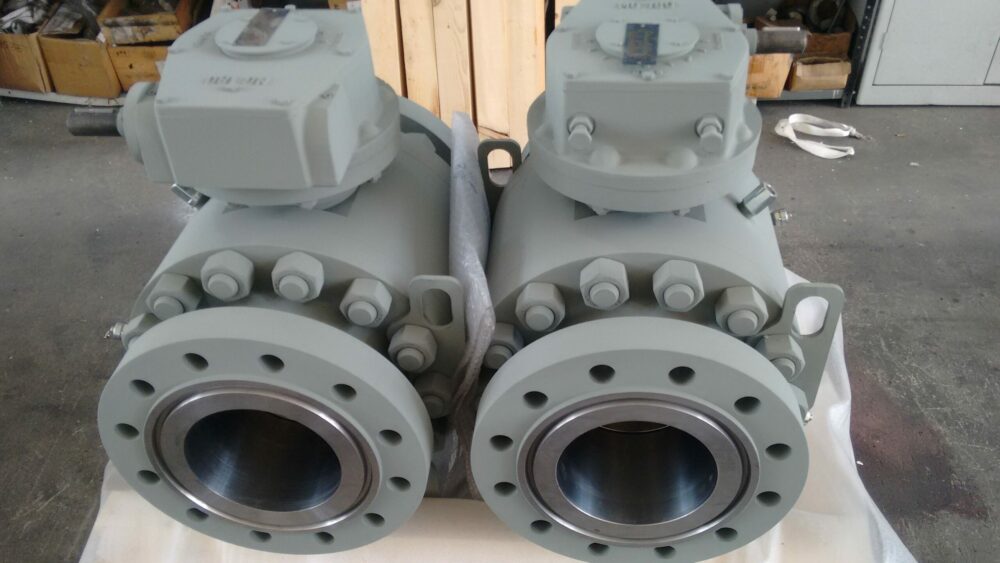

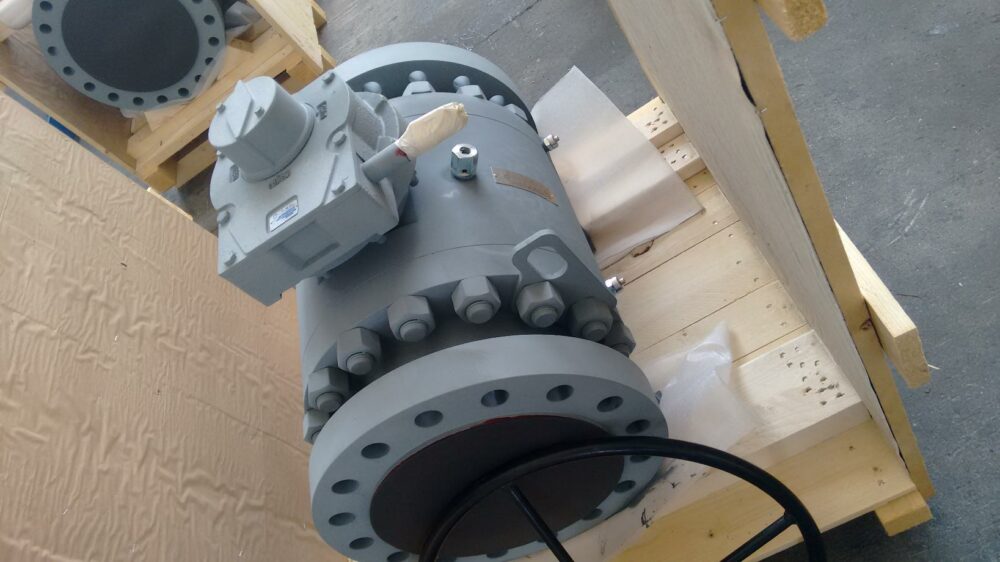

BALL VALVES: Manufacturing standard API 6D;

End Connections: Flanged, Threaded or Butt-welding Ends
Construction: Side Entry/ Top Entry

Body:  One Piece, Two Pieces, Three pieces
Body Seat Designs: Integral, Threaded, or Seal Welded in Place
Manufacturing Range: 1/2″ – 16″;  ANSI CLASS 150 – 2500
Operation: Lever, Gear, Bare Stem or Actuated

DUAL PLATE CHECK VALVE: manufactured according to API 594 for severe/corrosive applications, high temperatures and pressures. Material: Carbon, Alloy and Stainless steel, Duplex and Super duplex Special alloys, Titanium

End Connections: ASME – DIN ‐ API 6A

Range: 2” to 36” ANSI 150 to 2500; DN 50 to DN 900 PN 6 to PN 40  – Body style: Wafer, Lugged, Double flanged

GLOBE VALVES: Manufacturing standard BS 1873, ANSI Class Rated, Bolted Bonnet OS&Y Construction with Position-indicating Rising Stem, and Non-rising Handwheel

End Connections: Flanged or Butt-welding Ends
Disk Types: Plug, Parabolic, and Ball Type Disk
Body Patterns: Straight, Angle, and Y Patterns
Body Seat Designs: Integral, Threaded, or Seal Welded in Place

Manufacturing Range: 2″ – 16″;  ANSI CLASS 150 – 2500

Operation: Handwheel, Gear or Actuated
Shell Materials: ASME B16.34 Material Group 1, Group 2, Group 3, Aluminum-Bronze, Titanium
Packing Materials:  Flexible Graphite, PTFE

GLOBE VALVES: API 600 Gate Valves, ANSI Class Rated, Bolted Bonnet OS&Y Construction

End Connections: Flanged or Butt-welding Ends
Gate Design: Flexible, Solid, Double Disc or Parallel Slide
Body Seat Designs: Integral, Threaded, or Seal Welded in Place

Manufacturing Range: 2″ – 48″;  ANSI CLASS 150 – 2500

Operation: Handwheel, Gear or Actuated
Shell Materials: ASME B16.34 Material Group 1, Group 2, Group 3, Aluminum-Bronze, Titanium
Packing Materials:  Flexible Graphite, PTFE
